Tigtronic Serisi

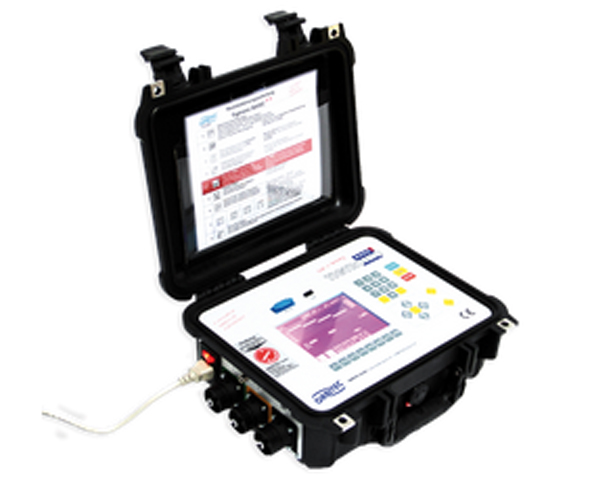

Affordable, compact microprocessor-based controller for orbital welding with open tongs, enclosed heads, tube-to-tubesheet weld heads and turn tables. The controller is based on the tried-and-tested, reliable TIGTRONIC ORBITAL controller. Can be connected to TETRIX 200 or TETRIX 351.

5.7" display, fixed

Extremely simple multilingual user guidance thanks to programming support: Managed input of the tube outer diameter, wall thickness and weld head indicator

Monitoring of gas and water cooling

Option of welding in up to SIX sectors, in continuous or step travel mode

Individual modification of the calculated program parameters, also using current percentage button

Graphic display of the welding progress

Real-time monitoring of the welding parameters

Integrated day counter (assignment to isometries and weld joint numbers)

Storage of up to 99 welding programs

Storage of up to 400 actual parameters

Software updates possible

Error tracking program

Option for connecting a remote control (The controller can also be operated from the display without a remote control)

Connection for oxygen analysers

Data transfer of target / actual parameters and programs over the USB interface

Compact and lightweight with outer dimensions of (L x W x H) 340 x 295 x 150 mm and a weight of only 5.5 kg

Autorange 90 – 260 V

Optional:

COOL 50 or EVO COOL cooling unit

AVC upgrade kit

Package includes:

Controller

Power cable

Controller / power source interface cable

USB stick

Package includes:

Controller

Power cable

Controller / power source interface cable

USB stick

integrated wire card

Package includes:

Controller

Power cable

Controller / power source interface cable

USB stick

integrated wire card

special software only for RBK tube-to tubesheet weld heads

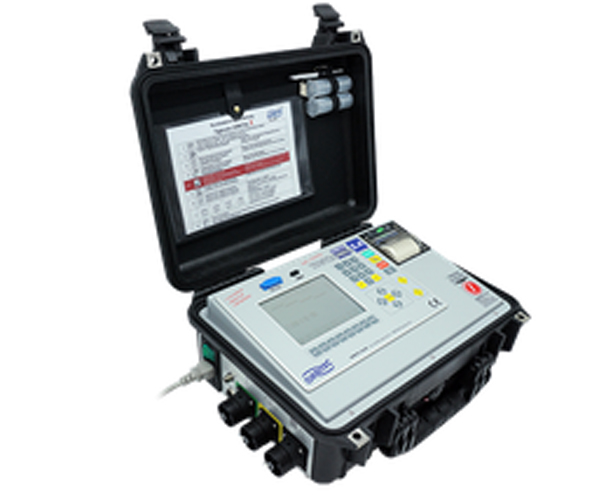

The 5th generation of our reliable, tried-and-tested standard controller. Can be connected to TETRIX 200 or TETRIX 351.

5.7" display

Extremely simple multilingual user guidance thanks to programming support (entry of tube outer diameter, wall thickness and weld head indicator)

Monitoring of gas and water cooling

Orbital tacking mode can be activated

Option of welding in up to SIX sectors, in continuous or step travel mode

Individual modification of the calculated program parameters, also using current percentage button

The current and wire feed parameters can also be changed during welding

Graphic display of the welding progress

Real-time monitoring of the welding parameters

Integrated day counter (assignment to isometries and weld joint numbers)

Storage of up to 99 welding programs

Storage of up to 400 actual parameters

Data transfer of welding parameters and programs via USB

interface

Software updates via USB possible

Error tracking program

Option of connecting a remote control (the controller can also be operated from the display without a remote control)

Connection for oxygen and purge pressure analysers

Integrated wire card

Integrated thermo printer (longlife paper) with multilingual printout of actual /taget parameres

Compact and lightweight with outer dimensions of (L x W x H) 405 x 325 x 170 mm and a weight of only 8.3 kg

Autorange 100 – 240 V

Optional:

COOL 50 or EVO COOL cooling unit

AVC upgrade kit

Package includes:

Controller

Power cable

Controller / power source interface cable

USB stick

2 pieces tungsten boxes

Pen with touch screen function and LED light

for Tigtronic controllers

for Tigtronic controllers

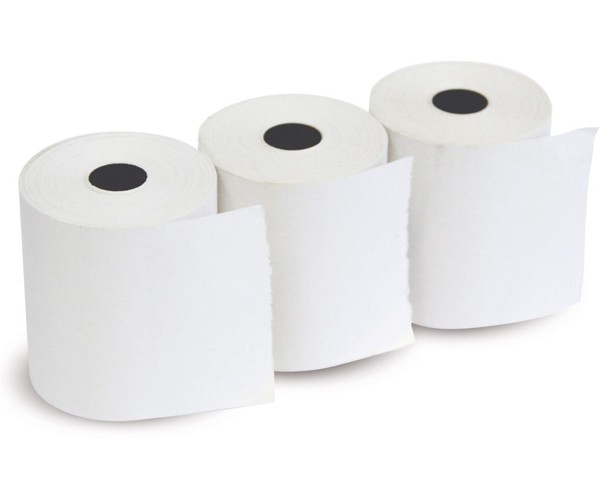

Paper rolls for integrated printer, pack of three

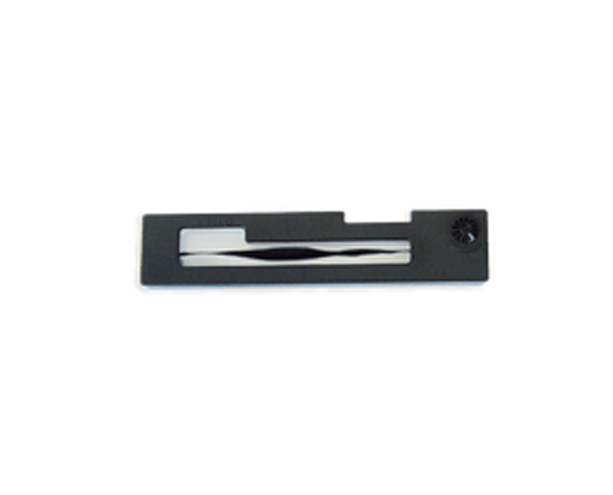

Ribbon cartridge for TIGTRONIC ORBITAL 4 integrated printer
